Powerful Motor Control

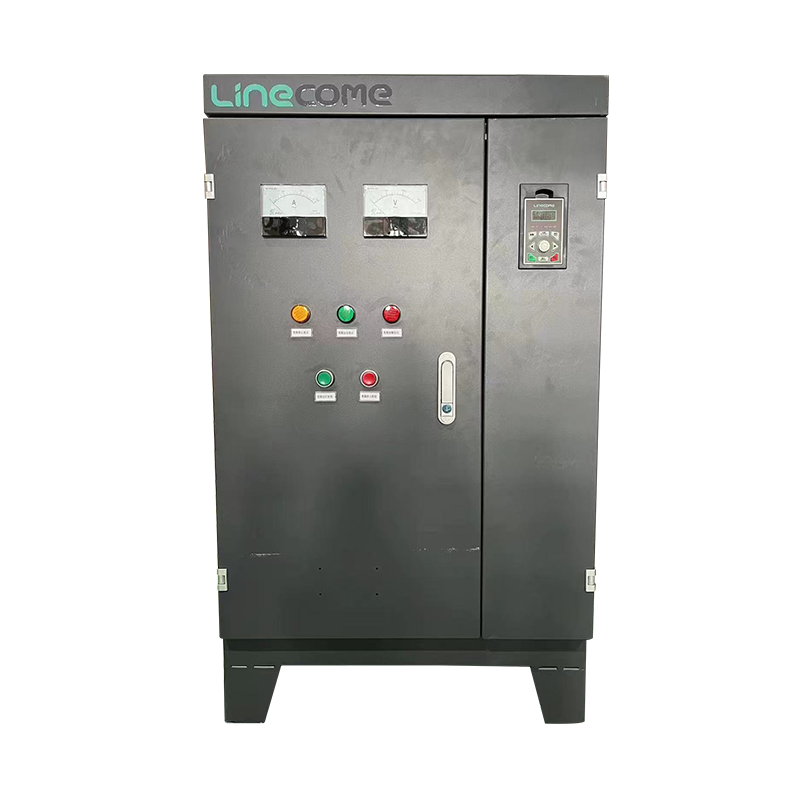

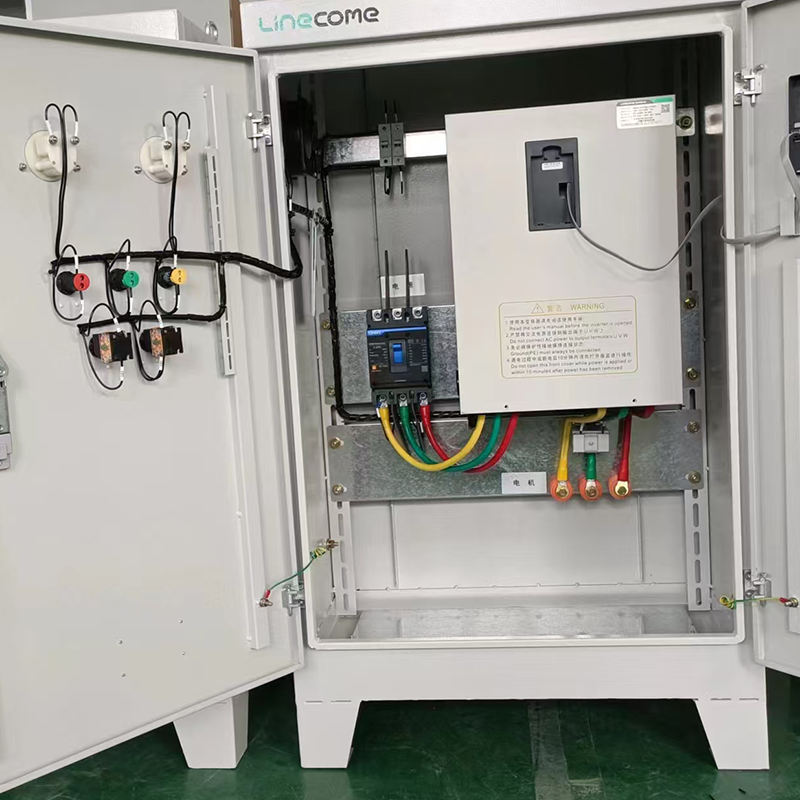

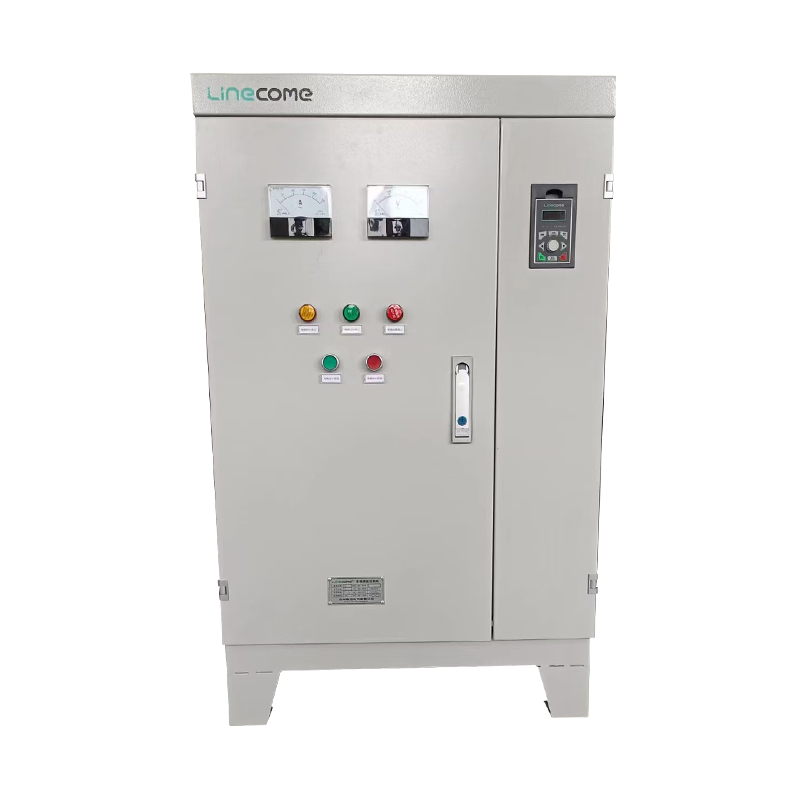

The Frequency Conversion Cabinet is equipped with a powerful motor control system. It can easily drive and control asynchronous motors, ensuring precise and efficient operation. The main control chip of the cabinet is a dedicated DSP chip for motor control, which provides robust current vector control capabilities. This enables higher performance and more accurate motor drive control, making it suitable for a wide range of applications.

Advanced Control Features
The Frequency Conversion Cabinet boasts a variety of advanced control features. It offers multiple frequency source superposition and switching methods, as well as an advanced PID algorithm. With 15-segment speed control and automatic program operation, users can achieve precise speed control and efficient process management. The cabinet also features frequency tracking and swing frequency control, further enhancing its versatility and adaptability.

Flexible Frequency Settings
The Frequency Conversion Cabinet supports multiple frequency setting methods, making it highly adaptable to different user requirements. Users can set frequencies digitally, through analog signals, using PID control, multi-segment speed settings, simple PLC settings, pulse settings, or via RS485 communication. This flexibility allows for seamless integration into various automation systems and processes.

Built-in PID Functionality
The Frequency Conversion Cabinet comes with a built-in PID function and a PID DISABLE function. This allows for precise control of processes that require feedback and adjustment, such as temperature control, pressure regulation, and flow rate management. The PID function can be easily enabled or disabled as needed, providing users with greater control over their systems.

Frequency and Power Range
The Frequency Conversion Cabinet offers a wide output frequency range of 0-500Hz, with special settings available for frequencies up to 3000Hz in specific industries. This broad frequency range makes it suitable for a variety of applications, from low-speed operations to high-speed processes. The cabinet is available in power ratings from 0.75kW to 22kW, with a built-in braking unit for models up to 22kW, ensuring effective motor control and energy management.

Comprehensive Protection Features
Safety and reliability are key priorities for the Frequency Conversion Cabinet. It provides a range of fault protection functions, including overcurrent, overvoltage, undervoltage, overheating, overloading, and phase loss protection. These features offer comprehensive real-time monitoring and protection, ensuring the safe and stable operation of the motor and the connected equipment.

Communication Capabilities
The Frequency Conversion Cabinet is equipped with an embedded RS485 communication interface, supporting the MODBUS protocol. This enables seamless communication with other devices and systems, facilitating remote monitoring, control, and data exchange. The communication capabilities enhance the cabinet's integration into modern industrial automation networks, allowing for efficient system management and optimization.

Industry Applications
The Frequency Conversion Cabinet is widely used in various industries, including textile, papermaking, wire drawing, machine tools, packaging, food processing, fans, and pumps. It is also suitable for a range of automated production equipment series. Its robust performance, advanced control features, and adaptability make it ideal choice for businesses looking to improve their production efficiency, energy management, and process control.
